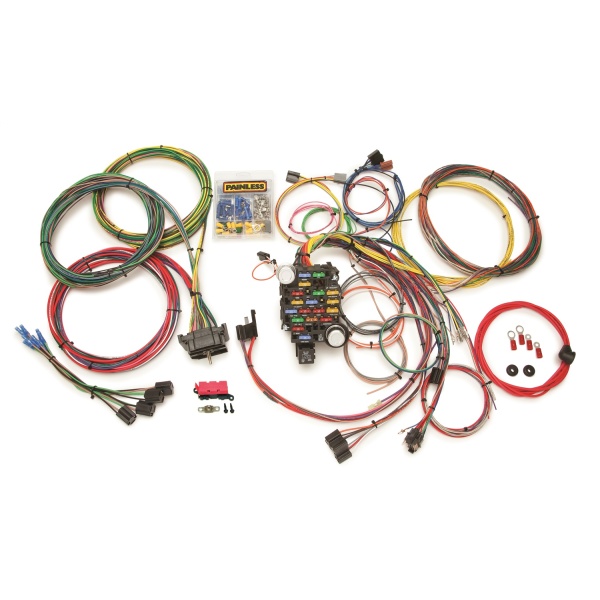

Painless Performance 28 Circuit Wiring Harness (10206)

This Painless 28 circuit 1967-1972 GMC/Chevy wiring harness was designed to fit the trucks, Blazers, and Suburbans, whether C10, C20, or C30. It features a factory style bulkhead connector and has many of the factory connectors already installed on the harness out of the box. Including: the headlight connectors & switch, dimmer switch, wiper motor, ignition switch, blower motor & switch, blower resistor, and instrument cluster. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.

This harness includes circuits for:

A/C & Heat
Accessory / Camper Cover Light
Accessory / Cigarette Lighter
Accessory / Four Wheel Drive Switch
Backup Lights
Brake Lights
Charging
Cruise Control
Dome Light
Electric Choke
Electric Fuel Pump
Emergency Flashers
Fan Relay Activation Power
Fused Power Source
Headlights
Horn (Relay)
Ignition Coil
Instrument Panel Lighting and Gauges*
Park Lights
Power Antenna
Power Door Locks
Power Windows
Radio/Clock (Constant and Switched)
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers and Washer Pump
* Including Wires For:
Ammeter
Brake Warning Light
Four Wheel Drive Light
Fuel Gauge
Generator Light
Oil Gauge
Tachometer
Temperature Gauge

This complete automotive chassis wiring harness fits:

1967 Chevrolet or GMC Pickup, Blazer, Suburban
1968 Chevrolet or GMC Pickup, Blazer, Suburban
1969 Chevrolet or GMC Pickup, Blazer, Suburban
1970 Chevrolet or GMC Pickup, Blazer, Suburban
1971 Chevrolet or GMC Pickup, Blazer, Suburban
1972 Chevrolet or GMC Pickup, Blazer, Suburban

Connections Included:

Ignition switch, headlight switch, dimmer swtich, wiper motor, blower switch, blower motor, blower resistor, instrument cluster and headlights, 10SI & 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.

Year: 1967-1972
Make: Chevrolet, Chevy, GMC
Model: Truck, Blazer, Suburban
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Number of Circuits: 28 Circuits – 18 Fuses w/ Horn Relay & Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based:  Factory GM
Circuit Designations: Printed on Wires
